Dust removal wheel

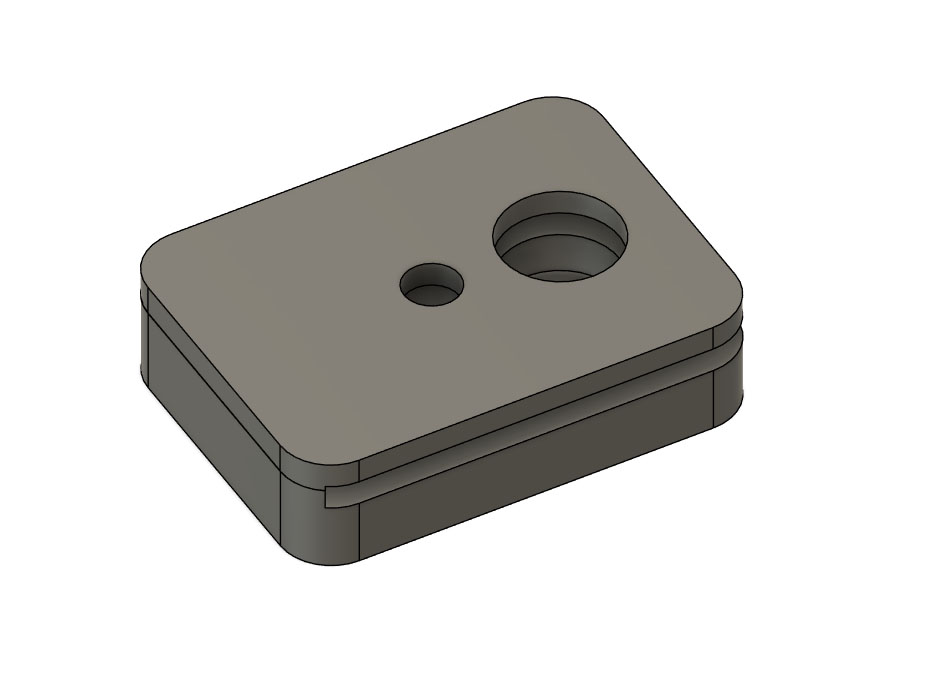

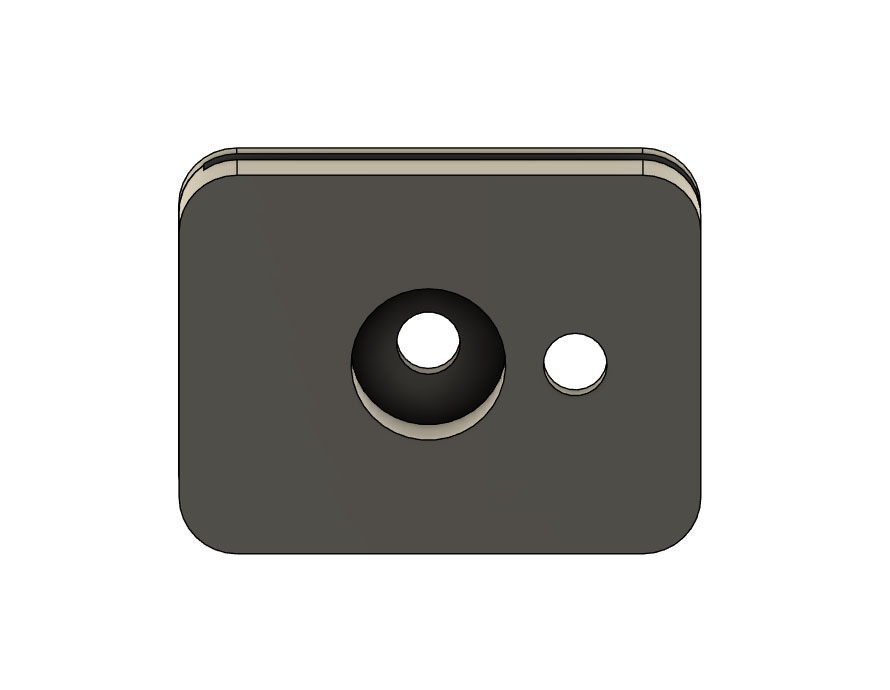

Dust-FlexPlate.stl

Dust‐removal.stl and Screw-protection-8mm.stl

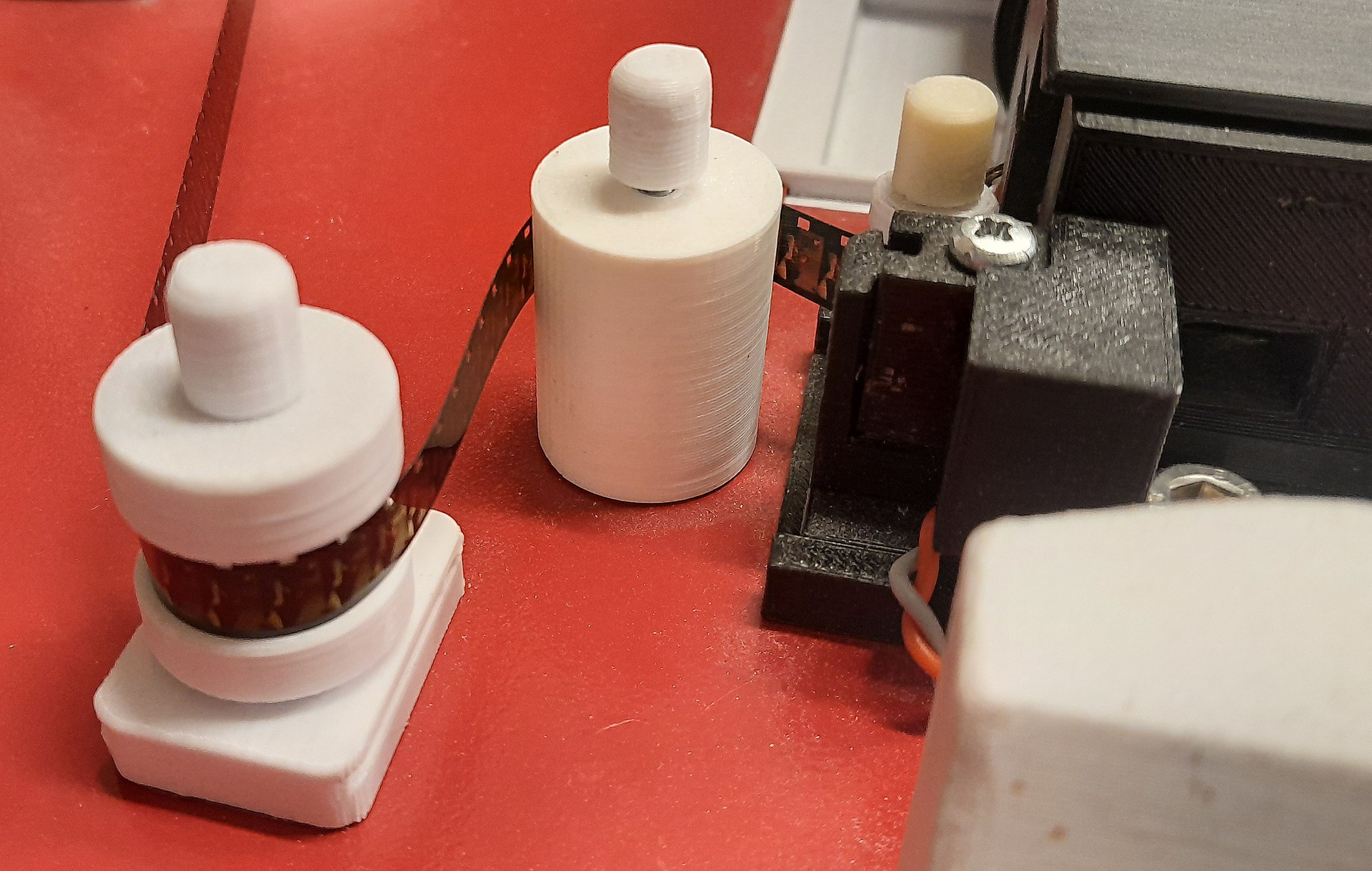

Right wheels

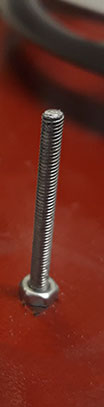

M3 x 35mm screw + nut

Apply double-sided tape to the wheels, then the back of electrical tape to the wheel, preferably low quality so that the film does not stick. Post-it tape probably works well too. On the left wheel only the surface where the film is against, otherwise it will be too tight!
If you use Wetgate then no tape is needed.

If you do not use tape as above, apply only electrical tape and it will be a nice and smooth surface.

These wheels also work as film guides.

Screwed into the existing hole and a small piece of double-sided tape underneath.

To the wheel M3 x 35mm screw + nut
and screw into the plate 5-10mm + nut
